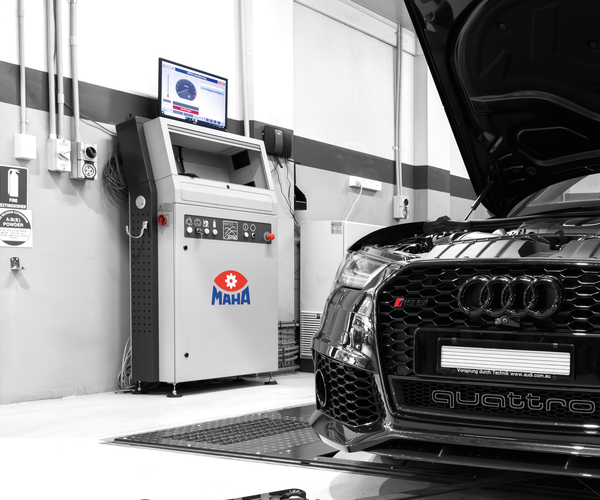

LPS 3000 Desk VP 186010

product details / scope of delivery

Description:
central test stand control system for the LPS3000 product
range, used in combination with R100 CAR Series/R200 TRUCK
Series roller sets

High level of flexibility in use due to extensive variety of
operating modes, covering all fields of application:

• Static power measurement at constant RPM
• Static power measurement at constant speed
• Static power measurement at constant tractive force
• Dynamic power measurement with adjustable acceleration
• MAHA towing power measurement guarantees the highest degree of accuracy when measuring power: Precision calculation of the parasitic losses of the dynamometer, of the vehicle's drive train and the tyre to roller friction and flex losses
• Tachometer testing with up to ten freely selectable test points
• Distance measurement included
• Stopwatch function for measurement of acceleration between optional speed markers as standard
• Optional load simulation with freely programmable load profile
• Optional driving simulation with freely programmable speed profile
• Option of storing programmed profiles in database

Professional, intuitive-use software for the highest expert
standards with:

• continuous graphic display and recording of up to 16 freely selectable parameters per performance measurement cycle on one measurement screen
• In addition to the current performance measurement cycle, fade-in of up to three stored cycles on the measurement screen for optimum comparability during calibration work
• Two circular dial displays for RPM and speed as well as current oil temperature display, ensuring constant control of key parameters during performance measurement
• Determination of wheel power, power dissipation, engine power and torque
• Standardised extrapolation of motor power in line with DIN 70020, EEC 80/1269, ISO 1585, JIS D 1001 and SAE J 1349 (configuration-dependent)

• Circular dial display of motor power, RPM, speed and tractive force during simulation cycles
• Colour-highlighted user prompts integrated within the circular dial facilitate the accurate reproduction of simulation cycles
• With radio remote control as standard for complete control of the dynamometer from within the vehicle.
• Radio remote control with long-life battery and charging station
• Cooling fan switched on and off either at the control console or with the radio remote control

• Interface box optionally upgradeable with MAHA plug-in analogue input module card with 4 sensor inputs for temperature and pressure sensors or lambda sensors
• Optional connection of MAHA MGT 5, MDO 2 LON and MET SERIES emission testers
• Optional connection of Krupp/AIC fuel consumption measuring instruments for petrol- and diesel engines

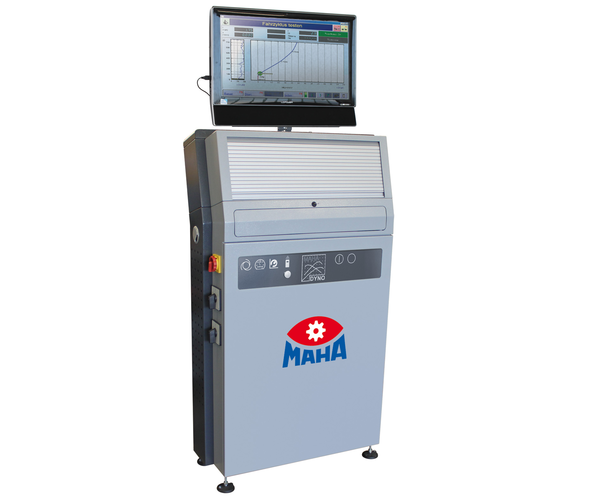

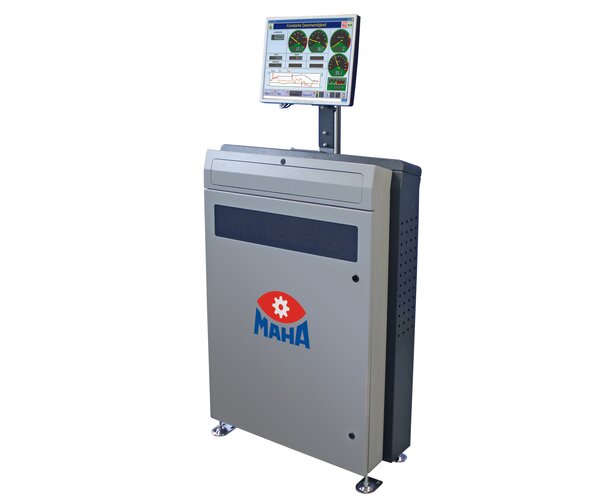

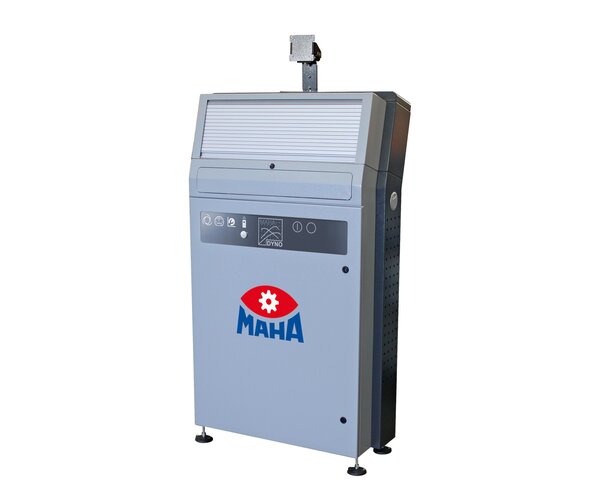

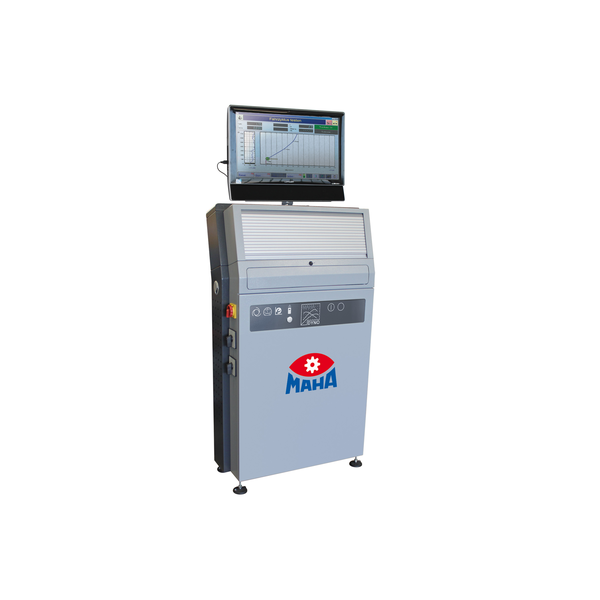

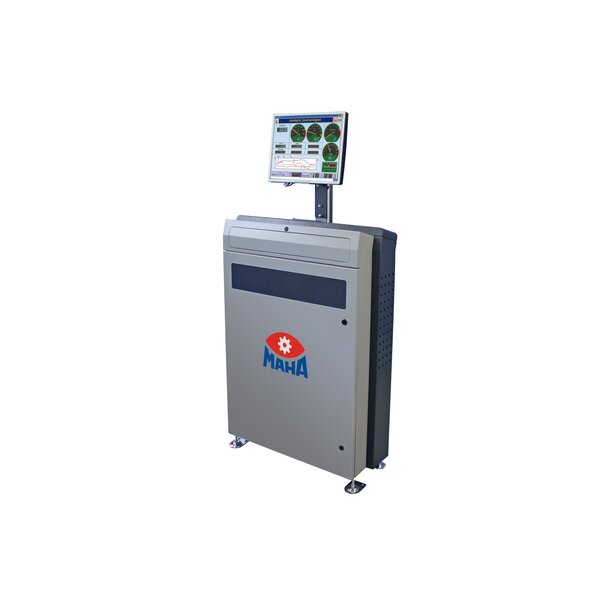

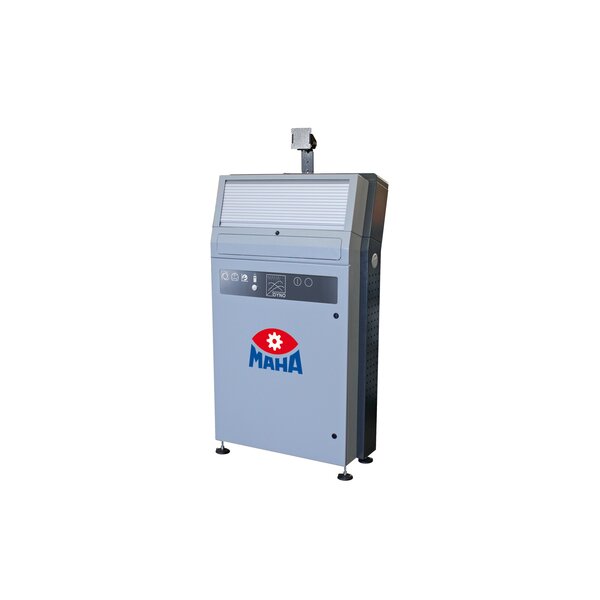

MCD 2000 Communication Desk Description

• Robust and multifunctional metal encasement
• Integrated switch cabinet for housing electronic components
• Lockable drawer for keypad and PC mouse and storage compartment for small items of equipment
• VESA standard bracket for holding the all-in-one PC or PC monitor
• Can be extended with optional PC storage compartment or side shelves
• Varnished with high-quality powder coating: window grey, RAL 7040 (switch cabinet) anthracite grey, RAL 7016, (side faces)
